Introduce:

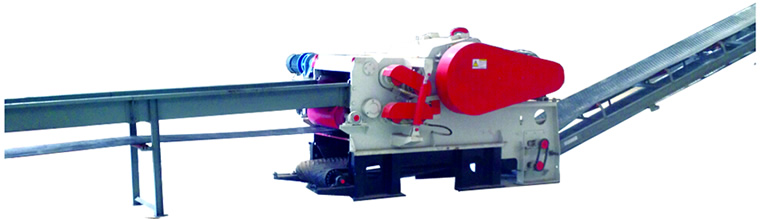

The drum wood chipper our factory developed allows many wasted materials such as log,undersized tree,wood processing residues(such as panel,slab,log core,waste veneer etc),Non-wood fiber rod stems (such as bamboo,cotton stalk,read,straw,wheat straw etc)to shape into certain specifications of piece of material.
The engine of wood chipper,welded by high strength sheet metal,is the support foundation for the whole machine.Dead-knife seat support welded with the engine base is used to put the knife seats.The pressed block fasten the dead knife in the knife seats by specialized in manufacturing of high strength bolts. The knife base is fixed in the engine base by clamp which can pass through the hole of side wall of base free. The chips can fall down through the screen and discharge the bottom of engine base.
Oversized wood chips can be broken by grinding rod installed in the engine base.
Technical parameters:
Model: | BX216 |
BX218 |
BX218D |
BX218-11 |
BX2110 |
BX2113A |
BX2113B |
BX2113-11 |
Diameter of cutters'roller: | 650 |
800 |
800 |
800 |
1000 |
1300 |
1300 |
1300 |
Feeding size (HXW) | 180*500 |
225*680 |
240*750 |
240*1050 |
330*1050 |
400*700 |
400*850 |
400*1050 |
Quantity of fly-cutters | 2 |
2 |
20 |
3*2 |
2*2 |
3 |
3*2 |
3*2 |
Speed of cutters'roller | 590 |
650 |
650 |
650 |
550 |
420 |
420 |
112 |
Feeding speed | 37 |
38 |
38 |
39 |
37 |
38 |
38 |
43 |
Max diameter of logs | 120 |
160 |
160 |
for board |
200 |
230 |
240 |
250 |
Capacity | 10 |
22 |
38 |
30 |
77 |
64 |
78 |
108 |
Chips size | 30 |
30 |
30 |
20 |
33 |
30 |
30 |
32 |
Main motor power | 55 |
110 |
132 |
160 |
220*250 |
200-250 |
250 |
315 |
Feeding roller power | 3*2 |
4*2 |
4*2 |
5.5*2 |
7.5*2 |
7.5*2 |
7.5*2 |
11*2 |
Pump power | Manual pump |
0.55 |
0.55 |
055 |
2.2 |
3 |
2.2 |
2.2 |
